Holley EFI Terminator X - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3
HomeStore

Holley EFI Terminator X - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3

Holley EFI Terminator X - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3

Select DBW Throttle Body
From $647.15

Original: $1,849.00

-65%
Holley EFI Terminator X - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3—

$1,849.00

$647.15

The Story

Overview
Take control of your LS engine with Terminator X. Don't settle for a junkyard ECU with a cumbersome tuning interface when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price. Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common LS engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy-to-use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won't break the bank.

Features:

  • Designed for GM LS Engines with 58x Crank, 4x Cam - and EV6 Injectors
  • Real-Time fuel map learn takes the guess work out of tuning your base fuel table
  • High Impedance Injector Drivers will safely power most Stock LS injectors and Holley EFI Injectors; injector support chart provided in the instructions (will not control Low Impedance Injectors)
  • All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control
  • MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
  • 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, activation triggers for nitrous activation, or a trans brake
  • 4 Outputs – Ground, PWM - for accessories such as fans, boost control, nitrous control, IAC Kit, and more
  • Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
  • Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
  • On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allows you to identify any Critical engine issues at a glance
  • Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety
  • The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any LS engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display
  • The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up
  • Plug and play compatible with more Holley EFI accessories such as; analog style gauges, shift lights, various modules, and coming soon, 12.3" digital dash support
  • Free EFI Tuning Software for complete control of your Terminator X power plant
  • Includes: 58x/4x LS Engine Main Harness - EV6 Injector Harness - Terminator X ECU - ECU Main Power Harness - Bosch LSU 4.9 Wideband Oxygen Sensor - Input/Output Harness - and assorted vacuum adapters

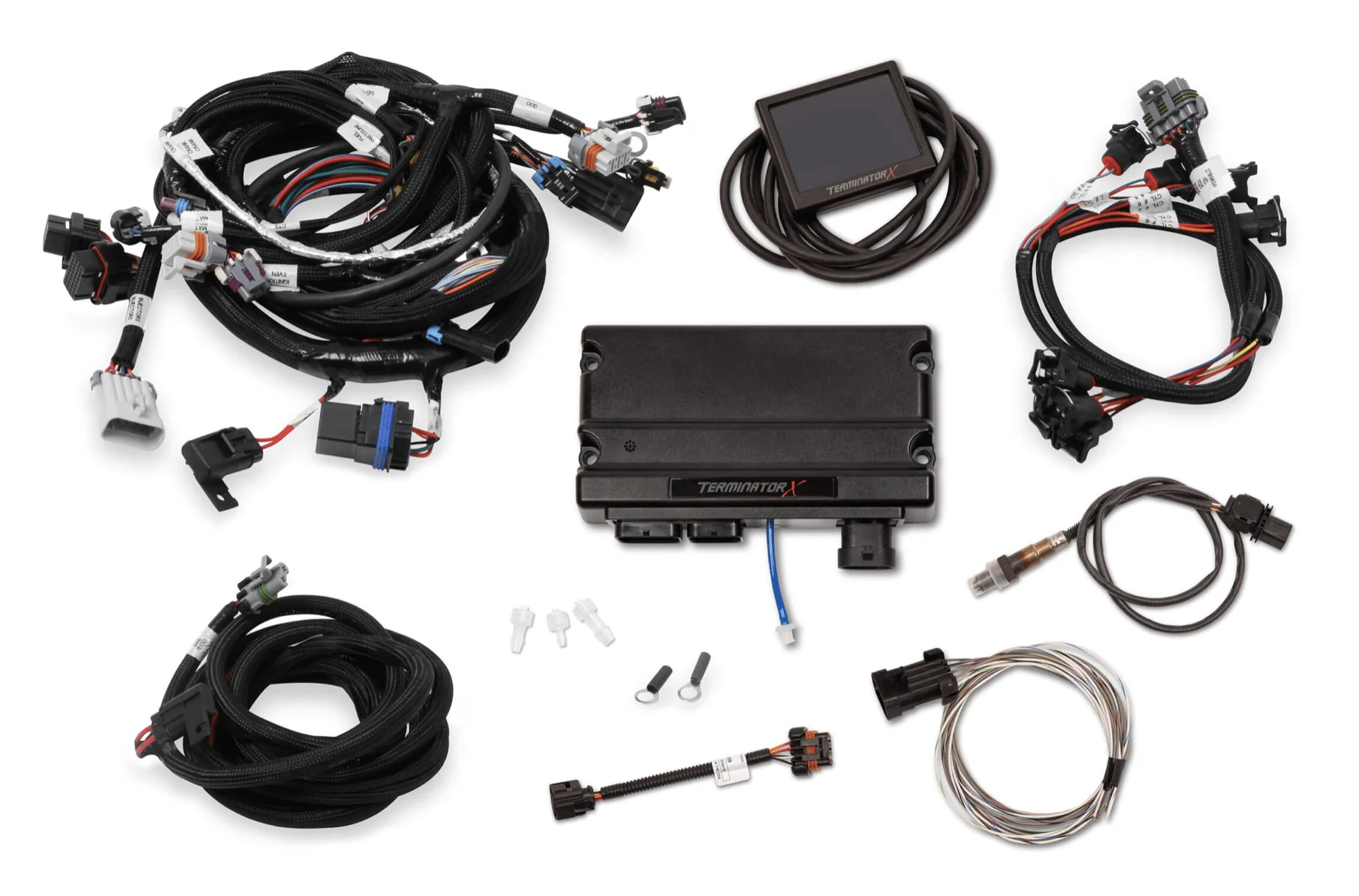

Holley EFI Terminator X - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3 - Image 2
