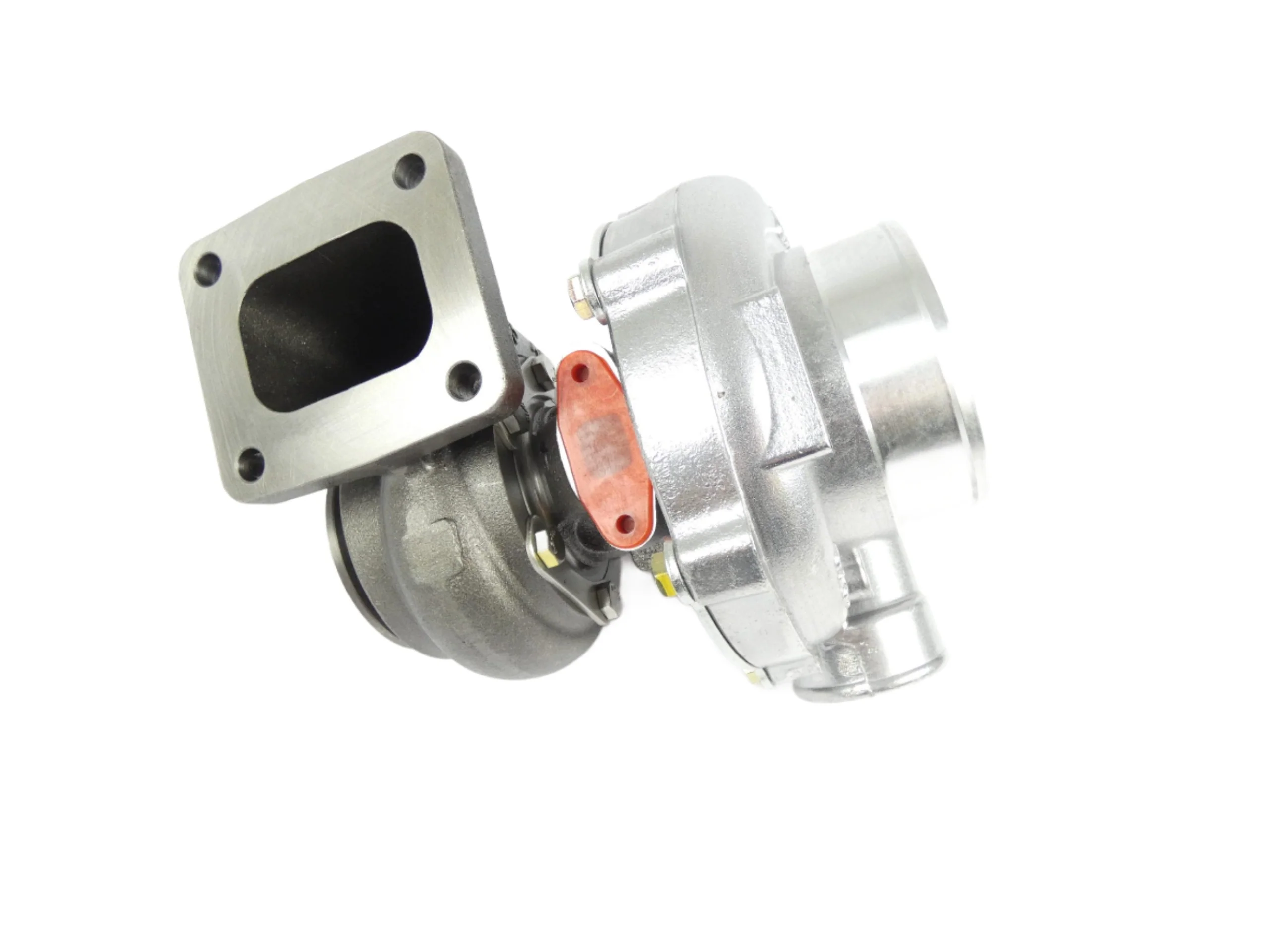

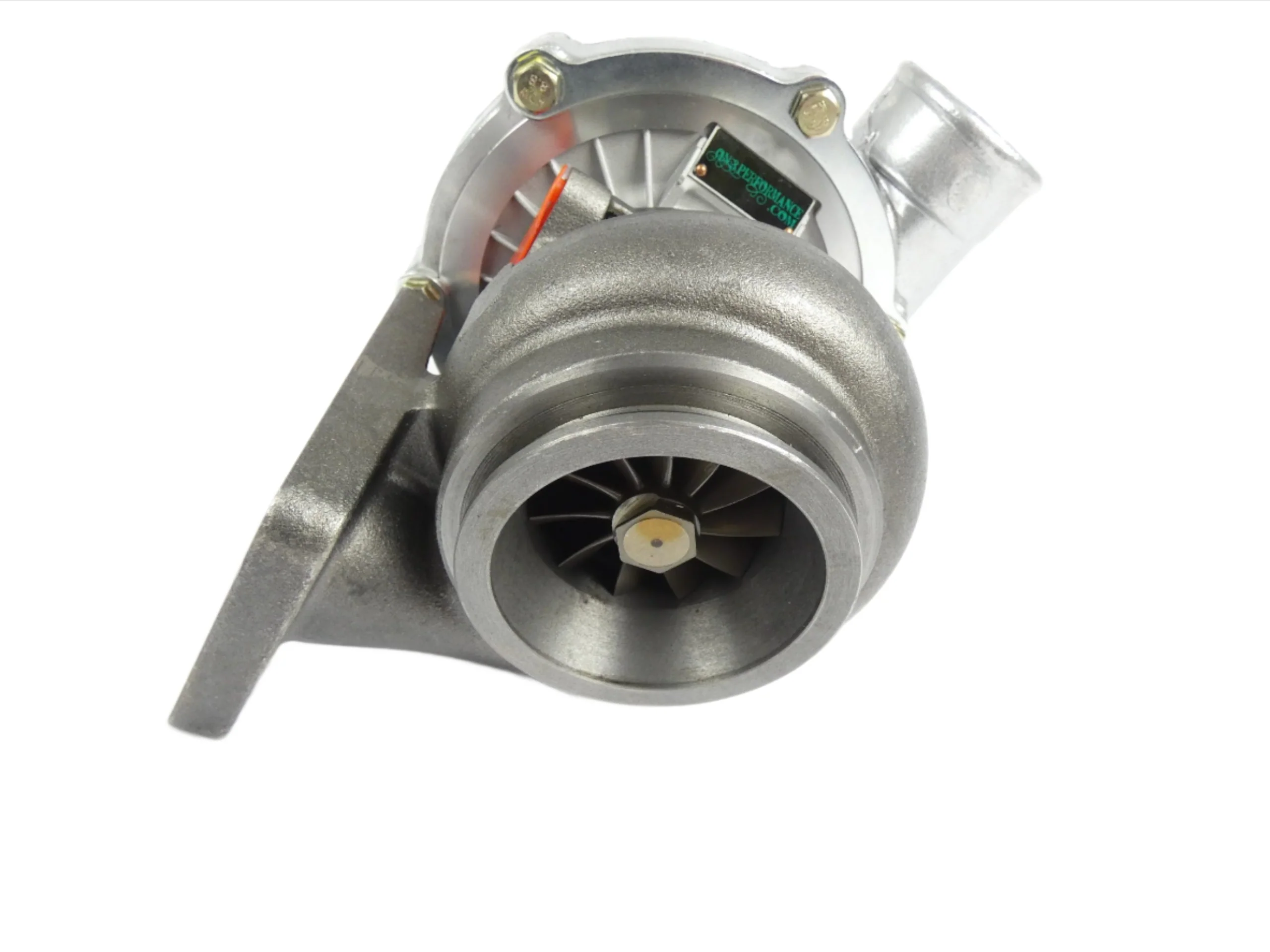

6165 Billet Wheel T4 Turbocharger

  On 3 Performance already has a great reputation for our larger journal bearing units and have added this to the line up. We have a number of single application cars running this but most common in V-8 Twin Turbo applications. For a moderate v-8 TT setup (up to 1100Hp) this turbo used in a twin application is perfect. Over the last year, the LSX guys have really taken to these turbos and been running a lot of custom TT build utilizing these specific units. They are a perfectly sized turbo for the 300-400ci engines that are going twin and sticking to the 500 - 1100 hp range.

Recommend Turbo Feed and Drain: To ensure the longevity of your turbocharger, we normally run 4an feed and a 5/8? return. This is very important and without this properly sized, you can cause damage to the product. Perfect for your On 3 Performance upgrade, Custom Mustang, LSx, ect Build

Cold Side

• Compressor Wheel 61mm
• .70 a/r
• 4 Inlet and 2.5 Compressor Outlet
• Inducer- 61mm
• Exducer- 99mm

Exhaust Side

• Exhaust Housing T-4 Flange
• .68 ar Exhaust Housing
• 3.0in. V-band outlet
• Inducer- 74.5mm
• Exducer- 65mm
