On3 Performance 38mm V-band Wastegate
Always in Stock and Ready to Ship!!
This is the On 3 Performance 38mm wastegate. We use this in several of our turbo kits here with nothing but success. They use a 2 bolt flange with a stainless body and stainless clamps. These come standard with a 7.5lb spring, however we sell springs separately to achieve the spring pressure you are after. We were able to hold the boost +/- .100 psi of boost on the dyno when testing our turbo system.

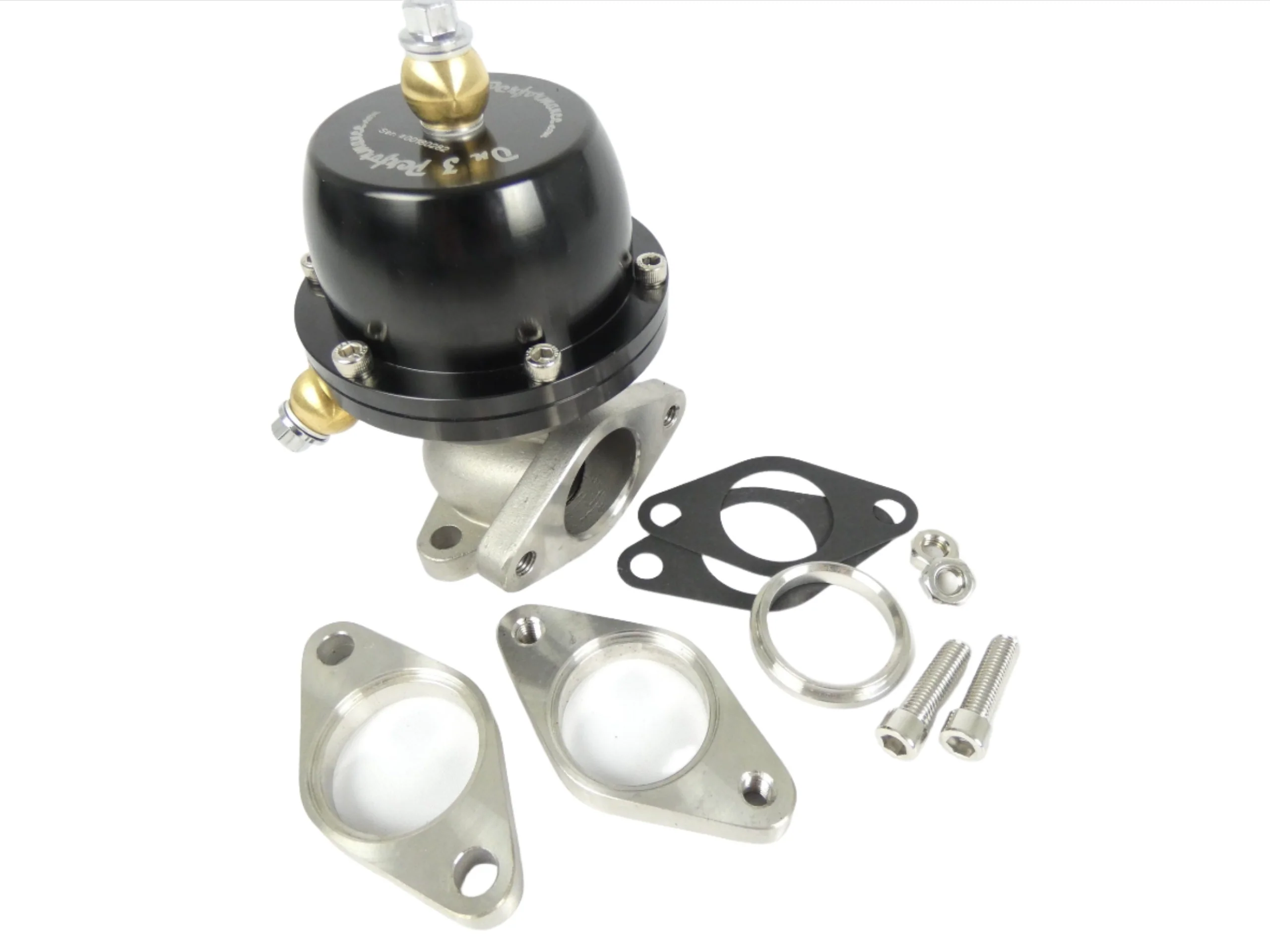

KIT INCLUDES: - On 3 Performance 38mm Wastegate (1pc) - 2 Bolt Mounting Flange - 2 Bolt Flange for the Dump Tube - Fire Ring
This is for a 2-bolt flange mounted wastegate. Originally this 38mm wastegate was on our 1st generation SN95 kit. (The new revision of the SN95 kit is now a 44mm v-band wastegate setup.) Our 3V and 4V turbo kits still maintain 38mm wastegates.
This wastegate has 2 base vacuum ports so if there is an obstruction in the way of one, you can just port the vacuum off the other access port.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
On 3 Performance
614-439-0057
On3 Performance 38mm V-band Wastegate
Always in Stock and Ready to Ship!!
This is the On 3 Performance 38mm wastegate. We use this in several of our turbo kits here with nothing but success. They use a 2 bolt flange with a stainless body and stainless clamps. These come standard with a 7.5lb spring, however we sell springs separately to achieve the spring pressure you are after. We were able to hold the boost +/- .100 psi of boost on the dyno when testing our turbo system.
KIT INCLUDES: - On 3 Performance 38mm Wastegate (1pc) - 2 Bolt Mounting Flange - 2 Bolt Flange for the Dump Tube - Fire Ring
This is for a 2-bolt flange mounted wastegate. Originally this 38mm wastegate was on our 1st generation SN95 kit. (The new revision of the SN95 kit is now a 44mm v-band wastegate setup.) Our 3V and 4V turbo kits still maintain 38mm wastegates.
This wastegate has 2 base vacuum ports so if there is an obstruction in the way of one, you can just port the vacuum off the other access port.
