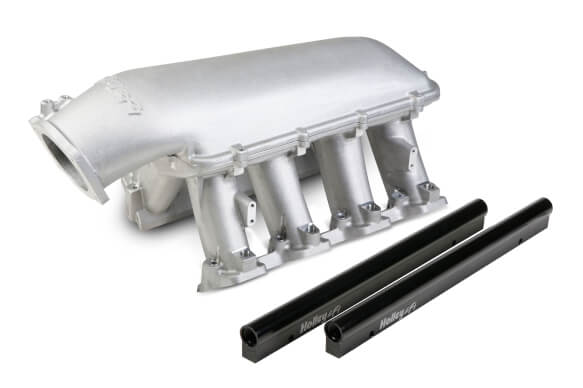

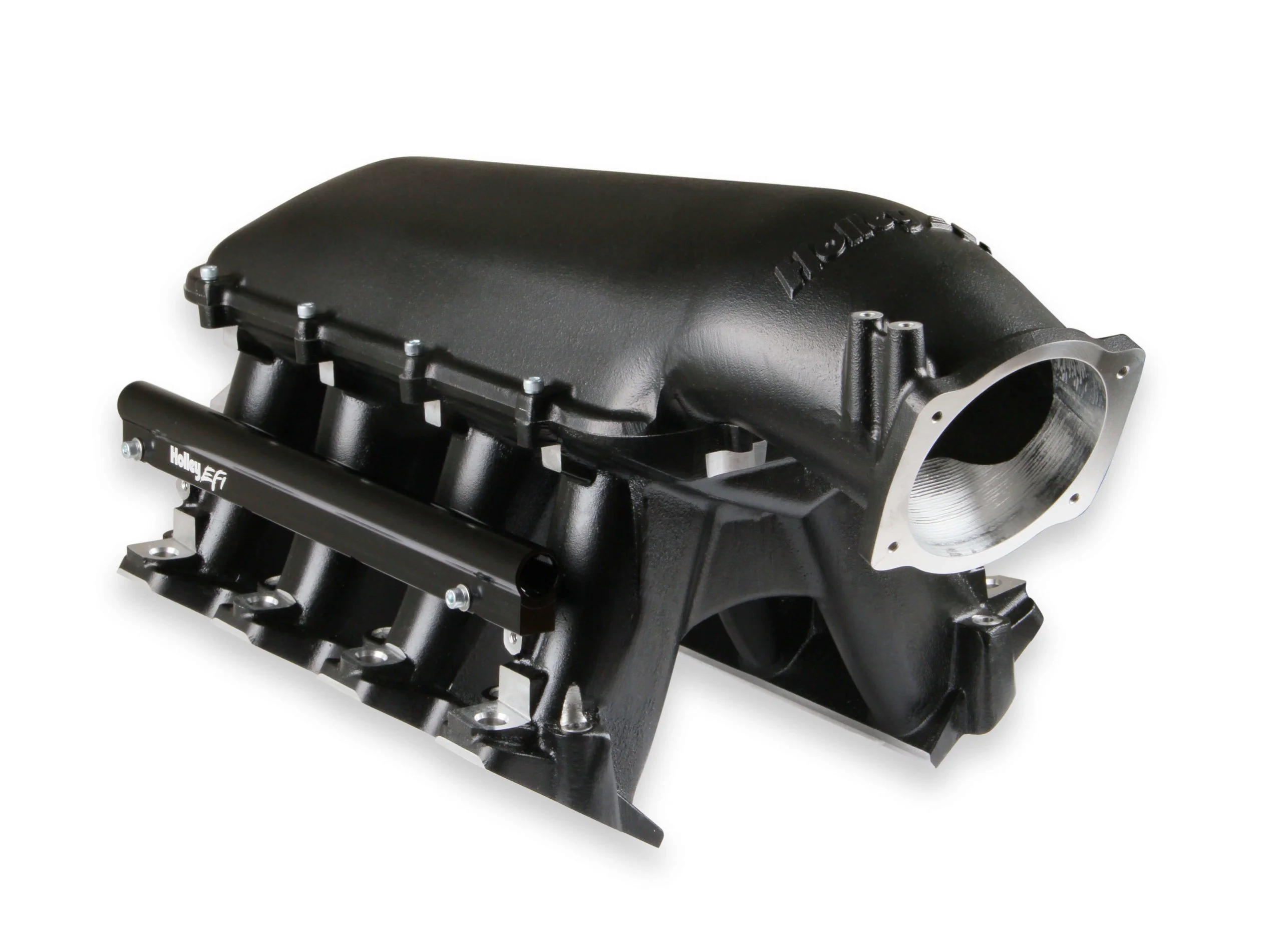

HOLLEY LS HI-RAM EFI MANIFOLD GM LS3/L92 *RAW/ BLACK AVAILABLE*

The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Cast aluminum construction. Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

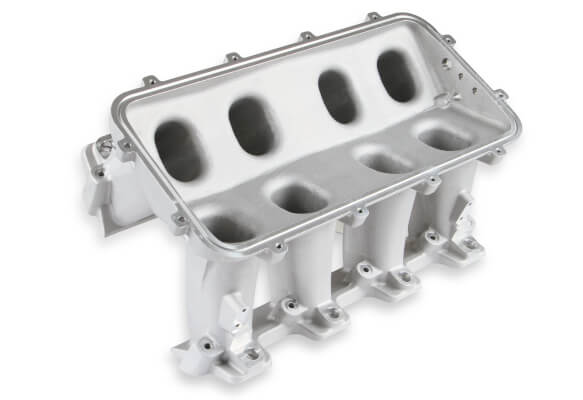

• Base Plenum Top Mounting Flange Height 8.42 to the lifter valley cover flange on engine block.
• Total Height with 92/105mm EFI Plenum Top 12.32 to the lifter valley cover flange on engine block.
• Port Size: 2.49 Height x 1.21 Wide
• Mounting Flange Gasket Type Standard LS3 Molded O-Ring
• Plenum Top Gasket Type 3/32 Round O-ring Cord
• Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height  8.42 (from engine block lifter valley cover flange), Longitudinal Location  3.84 (forward from engine block front flange), Angle  25 deg. (down from vertical)
• Runner Length  6.50, As-Cast Runner Cross-Sectional Area Tapered 4.25 in to 2.77 in
• Manifold has provisions for (1) 3/8 NPT and (2) 1/8 NPT fittings
